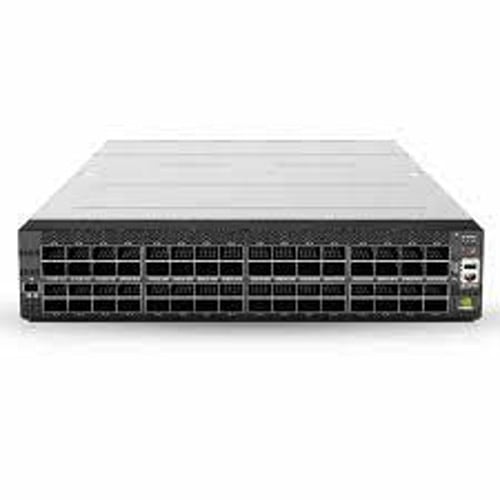

NVIDIA Spectrum SN5600
- Total ports: 64-port 800GbE + 1x 25GbE
- Switching Capacity: 51.2Tb/s
- Wire-Speed Switching: 33.3Bpps
About
The SN5600 smart-leaf/spine/super-spine offers 64 ports of 800GbE in a dense
2U form factor. The SN5600 is ideal for Spectrum-X deployments and enables both
standard leaf/spine designs with top-of-rack switches as well as end-of-row (EoR)
topologies. The SN5600 offers diverse connectivity in combinations of 1 to 800GbE
and boasts an industry-leading total throughput of 51.2Tb/s
Specification
Specifications
Connectors
64x OSFP 800GbE + 1 SFP28 25GbE
Max. 800GbE Ports
64
Max. 400GbE Ports
128
Max. 200GbE Ports
256
Max. 100GbE Ports
256
Max. 50GbE Ports
256
Max. 40GbE Ports
128
Max. 25GbE Ports
256 + 1
Max. 10GbE Ports
256 + 1
Max. 1GbE Ports
1
Switching Capacity
51.2Tb/s
Wire-Speed Switching
33.3Bpps
CPU
Hexa-core x86
System Memory
32G
SSD Memory
160GB
Packet Buffer
160MB
100/1000Mb/s Management Port
RJ45
Serial Port
RJ45
USB Port
USB Type 3
Hot-Swap Power Supplies
2 (1+1 redundant)
