Quadro Sync II

SKU 900-52061-0000-000 Categories , Tags , , Brand:

Enabling up to 32 synchronized displays

Powering up to 32 4K displays for entertainment outlets, sporting events.

Projector Overlay Support

Multiple projectors can be used to review design concepts or changes at scale.

Stereoscopic Display Support

Making a stereoscopic 3D display wall for a research lab while utilizing up to 32 displays with just one system

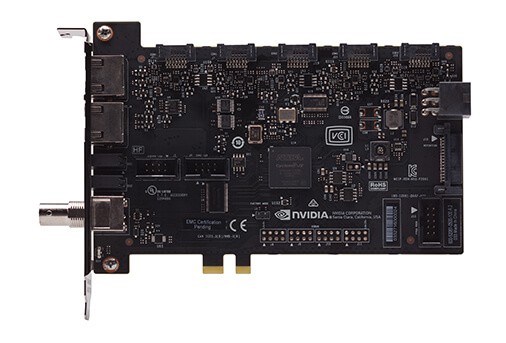

The new NVIDIA Quadro Sync II card brings new levels of flexibility and scalability to ultra-high resolution displays and visualization clusters. Quadro Sync connects to select NVIDIA Quadro Pascal™ GPUs, synchronizing them with the displays or projectors attached to them. Quadro Sync II also enables NVIDIA Quadro Mosaic™ technology on those synchronized displays and projectors, providing an easy way to scale the resolution of any application.

The new NVIDIA Quadro Sync II expands on the previous Quadro Sync solution by enabling the synchronization of up to twice the number of synchronized GPU display outputs. The Quadro Sync II can synchronize up to 8 GPUs per chassis, enabling up to 32 synchronized displays per chassis. The Quadro Sync II sets a new standard for synchronized display outputs for massive visualization solutions for video walls and multi-projector systems.





Maximum number of GPUs per Sync card
>Maximum number of Sync cards per system
Maximum number of synchronized GPUs per system
Maximum number of displays or projectors per system
Maximum number of displays or projectors with Quadro Mosaic™
Stereoscopic display support
Projector Overlap support
Windows Management Instrumentation (WMI) support
