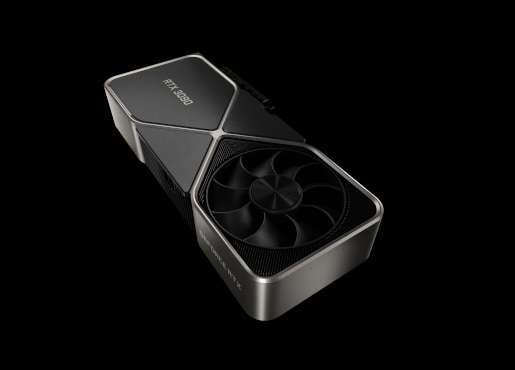

The GeForce RTX™ 3090 is a big ferocious GPU (BFGPU) with TITAN class performance. It’s powered by Ampere—NVIDIA’s 2nd gen RTX architecture—doubling down on ray tracing and AI performance with enhanced Ray Tracing (RT) Cores, Tensor Cores, and new streaming multiprocessors. Plus, it features a staggering 24 GB of G6X memory, all to deliver the ultimate gaming experience.
NVIDIA GEFORCE RTX 3090
- GPU Memory: 24 GB GDDR6X
- CUDA Core: 10,496
- PCI Express Gen 4
About
THE BFGPU
Specification
Specifications
GPU Architecture
NVIDIA Ampere
NVIDIA CUDA® Cores
10,496
Ray Tracing Cores
2nd Generation
Tensor Cores
3rd Generation
Boost Clock (GHz)
1.70
Base Clock (GHz)
1.40
Standard Memory Config
24 GB GDDR6X
Memory Interface Width
384-bit
PCI Express Gen 4
Yes
NVIDIA Ansel
Yes
NVIDIA G-SYNC™
Yes
NVIDIA® GPU Boost
Yes
NVIDIA NVLink (SLI-Ready)
Yes - With NVIDIA RTX NVLink Bridge
Maximum Digital Resolution
7680x4320
Graphics Card Dimensions
12.3" (313 mm) L x 5.4" (138 mm) W
Height
3-Slot
Maximum GPU Temperature (in C)
93
Graphics Card Power (W)
350 W
Supplementary Power Connectors
2x PCIe 8-pin
