2 H200 DEEP LEARNING AI SERVER
- GPU: 2 NVIDIA H200 NVL 141GB 600W or 2 NVIDIA RTX PRO 6000 96GB Server 600W
- CPU: Single AMD EPYC 9965 192Cores 384T 500W Processor
- System Memory: 3TB (12 DIMM)
- STORAGE: NVME Gen 5
About
SYMMATRIX® 2 H200/RTX Pro 6000 GPU Deep Learning System is a scalable and configurable 2U Rackmount System 2 Double Width NVIDIA H200-141GB or RTX Pro 6000 Blackwell Server GPU. Single AMD EPYC 9965 192Cores 384T 500W Processor.
SYMMATRIX provides full range of AI GPU Systems from 1 to 10 GPU custom to your requirements.
Specification
Specification
GPU
Options:
2 NVIDIA H200 NVL 141GB 600W or 2 NVIDIA RTX PRO 6000 Blackwell 96GB Server 600W
2 NVIDIA H200 NVL 141GB 600W or 2 NVIDIA RTX PRO 6000 Blackwell 96GB Server 600W
CPU
Single AMD EPYC 9965 192Cores 384T 500W Processor
System Memory
12 DIMM slots
3TB DDR5 6400MHz ECC RDIMM
Storage

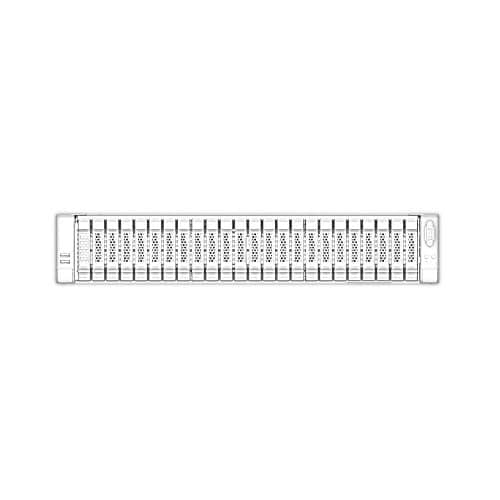

Type A: 16 * 2.5” NVMe/SATA/SAS4 + 8 * 2.5" SATA/SAS4 drives

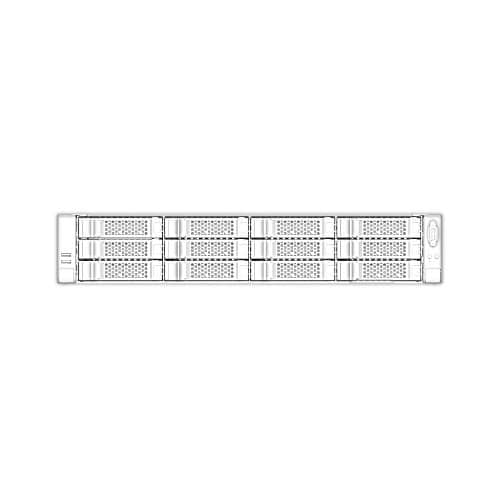

Type B: 12 * 3.5” NVMe/SATA/SAS4 drives
Network
2X 10GbE ports + 1X IPMI
100G to 800G High Speed Networking Optional
System Weight
Gross Weight ~ 25 KG
System Dimension
Dimension: 19"(W) x 2U (H) x 740mm (D)
Maximum Power Requirements
2400W 1+1 Redundant, Titanium
Operating Temperature Range
0° C ~ 35° C
Support & Warranty
Three or Five Years on-site parts and services, NBD 8x5
